Stainless Steel Bar Grating
Product Description

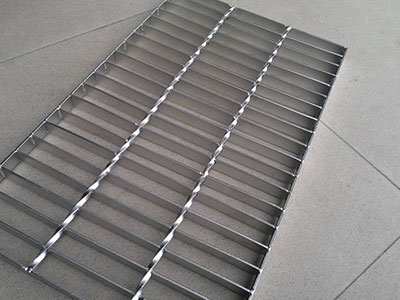

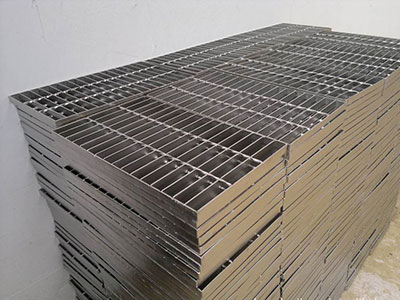

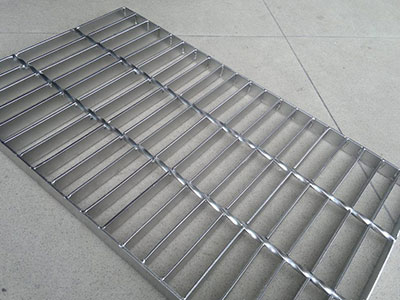

Stainless steel bar grating is a rigid grid structure consisting of load-bearing bars and cross bars (welded, press-locked or swage-locked), made from austenitic stainless steel (Grade 304/316). It offers excellent corrosion resistance, high strength-to-weight ratio, and an open area for ventilation and drainage. Suitable for walkways, platforms, stair treads, trench covers and catwalks in food processing, chemical, marine and architectural applications.
Material: Stainless Steel 304/316

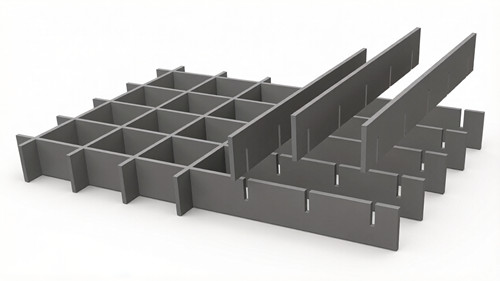

Type: Welded Type (W) or Press-Locked / Swage-Locked Type
Structure: Bearing Bar (Flat Bar) / Cross Bar / Twisted Square Bar

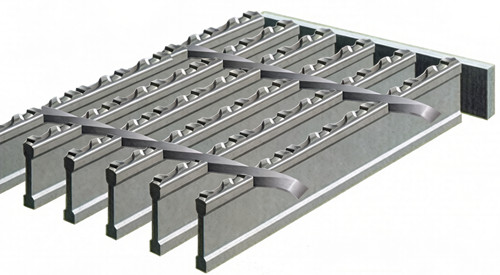

Surface: Serrated Surface (Serrated Type) / Plain Surface
Bearing Bar Size:
Light Duty / Walkway- 20×3、25×3、25×5
Standard Duty- 30×3、30×5、32×3、32×5、40×3、40×5
Heavy Duty Platform- 50×5、50×6、60×5、65×5
Bearing Bar Pitch:
30mm, 40mm, 60mm etc.
Cross Bar Size:
6mm, 8mm, 10mm etc.
Cross Bar Pitch:
50mm, 100mm etc.
Grating Width:
600mm, 800mm, 1000mm, 1200mm etc.
Grating Length:
1000～6000mm
